The Value of Total Station Monitoring Data in Construction
Introduction
Complex construction projects demand more than periodic visual inspections. High-precision monitoring provides project teams with data to track structural movement, establish baseline trends, and support proactive decision-making before minor shifts become costly delays or safety concerns.
What Is Total Station Monitoring?
Total station monitoring uses high-precision optical surveying equipment to track the exact coordinates of designated monitoring points over time. Whether deployed through targeted manual surveys or continuous Automated Total Stations (ATS), these instruments capture precise dimensional changes that may not be visible to the naked eye.
From Measurements to Meaningful Data
Spatial coordinates deliver maximum value when collected consistently across project milestones. Systematic optical tracking allows engineering teams to:
- Establish Baselines: Record accurate initial conditions prior to excavation, demolition, or pile driving.
- Identify Movement Trends: Distinguish normal environmental changes from actual structural displacement.
- Threshold Alerts: Compare field data against predefined action and safety limits to allow for work to be halted, a change in construction methods, or remediation to occur before potential structural damage or failure.
- Protect Project Integrity: Document surrounding site conditions throughout construction to help manage risk and support project requirements.
Integrating Surface and Subsurface Insight
While total station monitoring tracks surface displacement, pairing optical prisms with subsurface instrumentation, such as piezometers or inclinometers, can provide a more complete picture of site conditions. Optical data can identify where displacement is occurring, while subsurface sensors can provide additional insight into contributing conditions.
How FTG Supports Structural Monitoring Programs
Foundation Test Group (FTG) designs and deploys geotechnical and structural monitoring systems that give project teams greater visibility into site behavior. Through automated data collection, threshold alerting, and engineering analysis, FTG turns complex spatial measurements into actionable information.
Real-World Applications

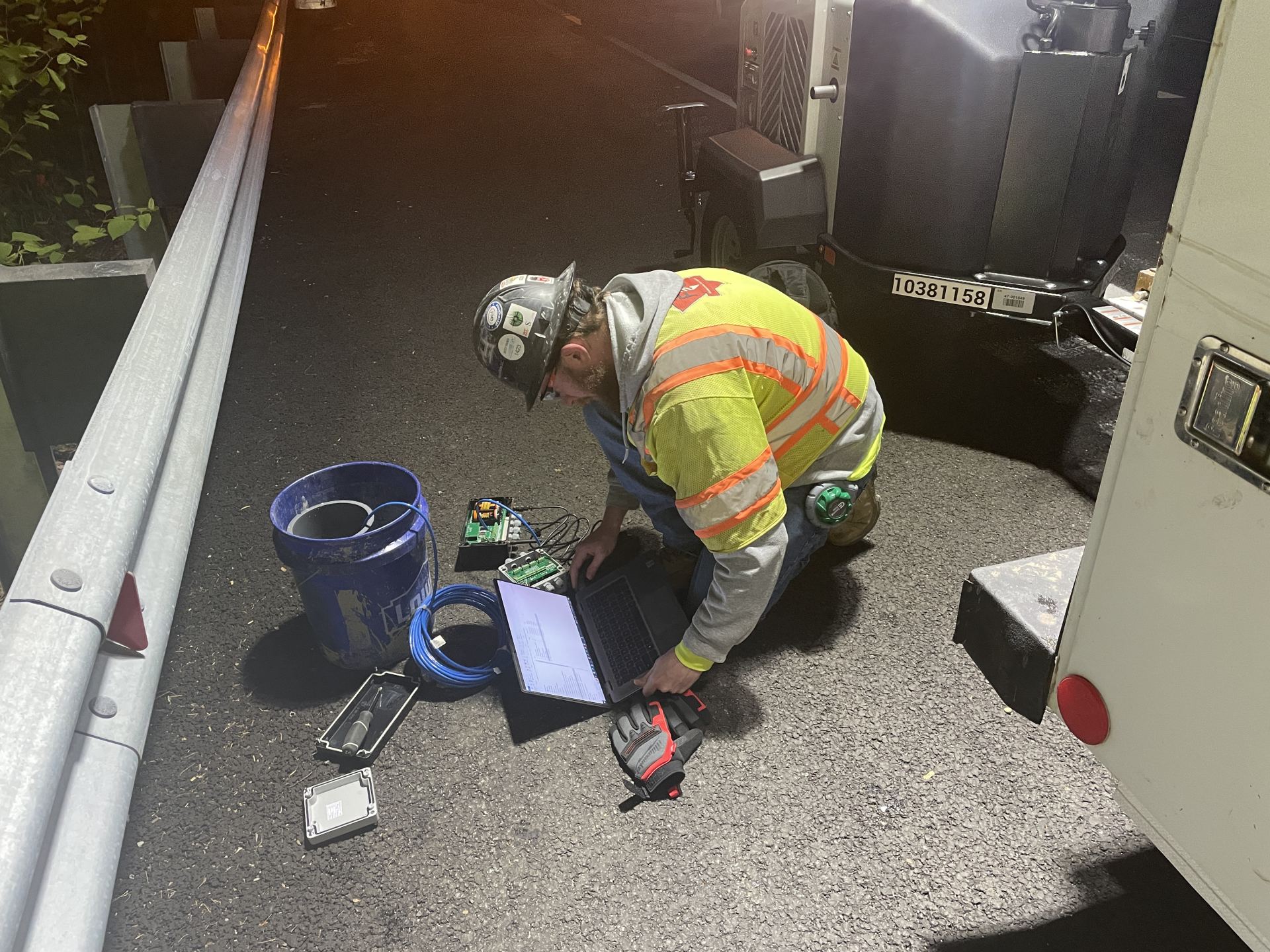

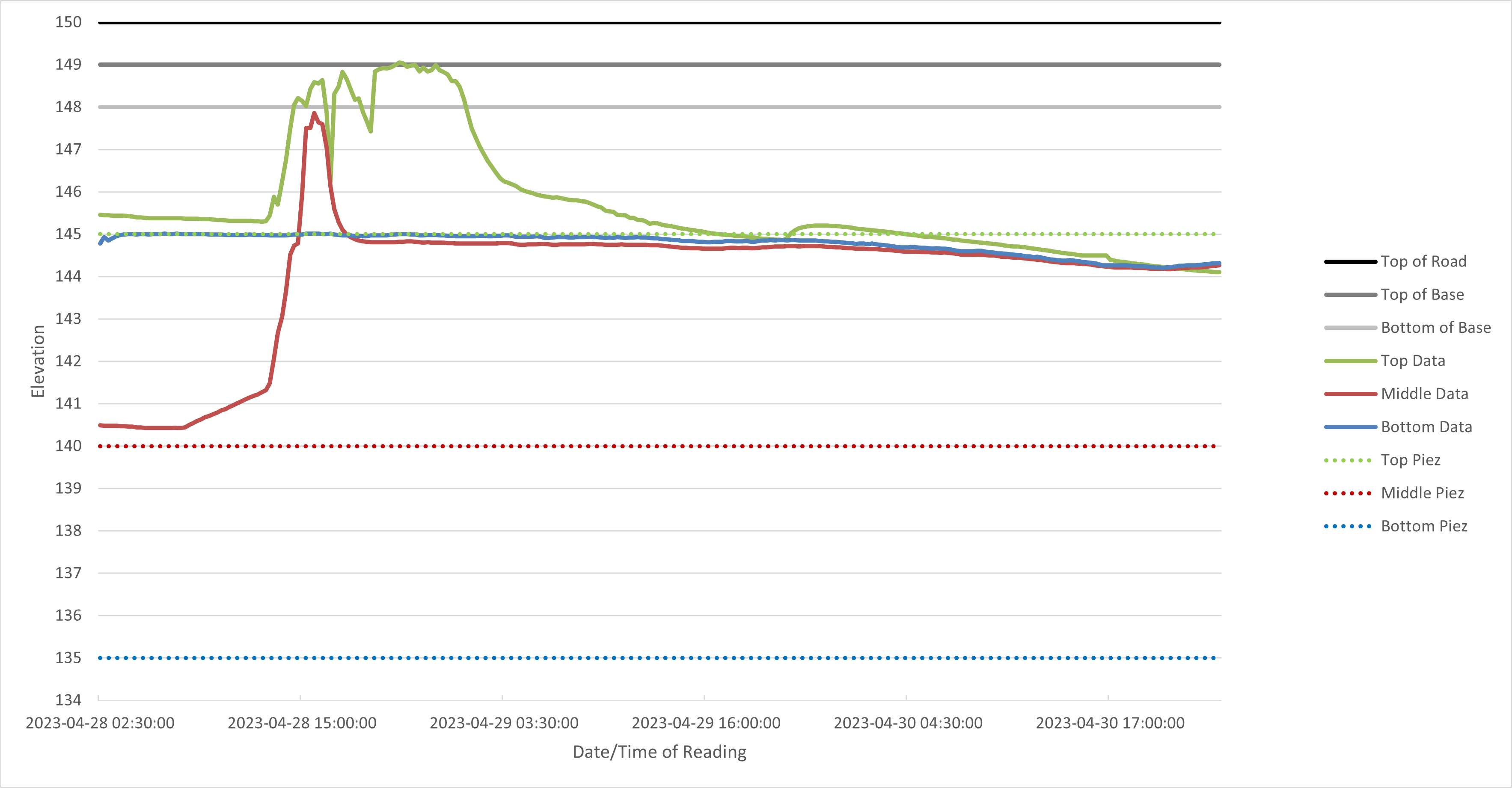

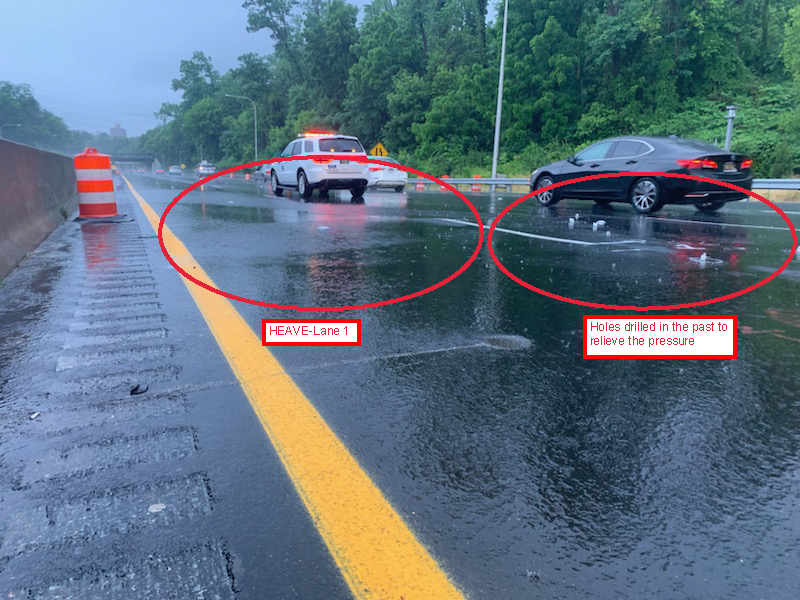

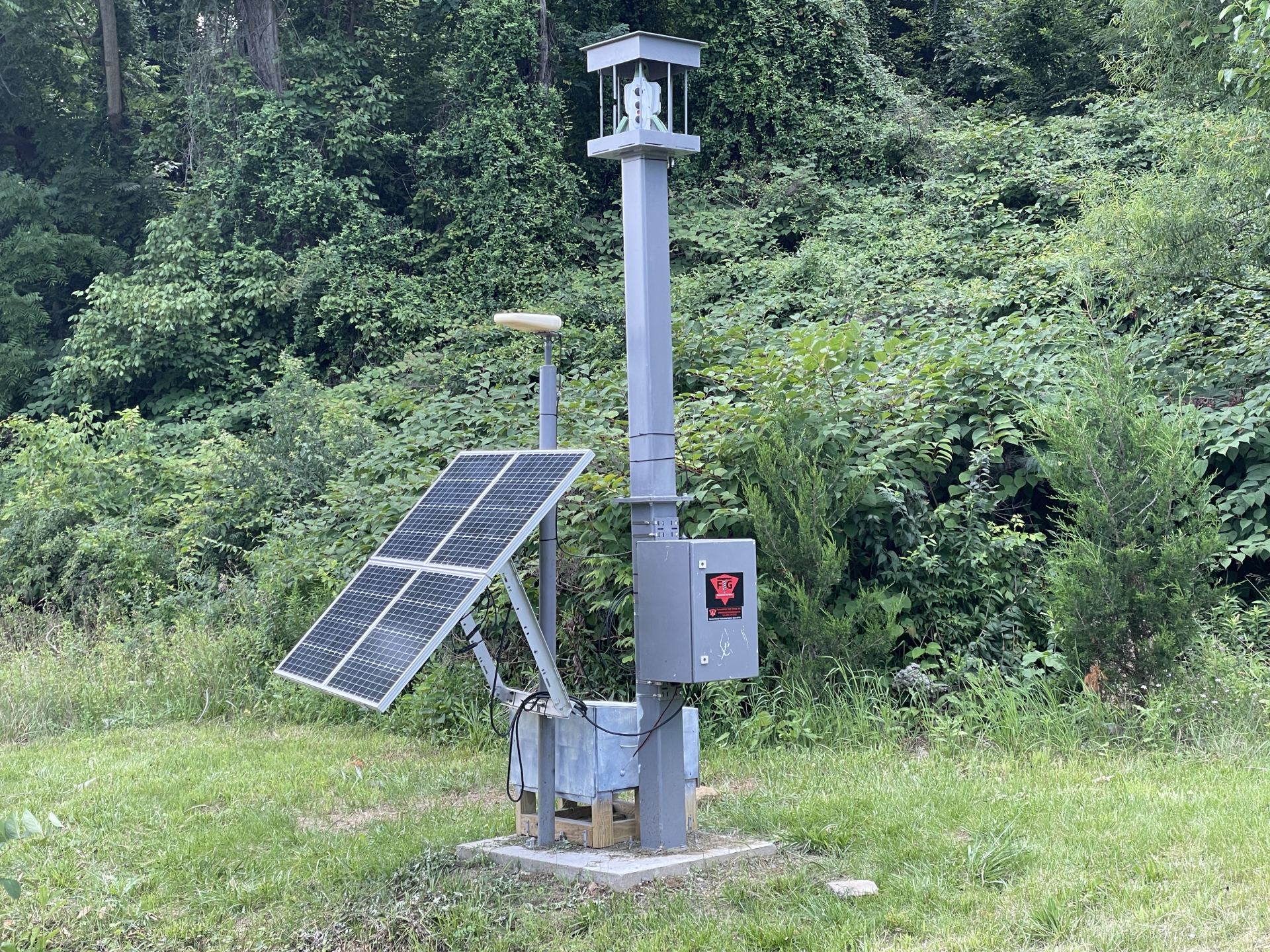

Total station monitoring can be particularly valuable on high-risk sites where excavation, dewatering, or heavy foundation construction could impact adjacent utilities, highways, or existing buildings. FTG used an ATS on a project along I95 where the roadway was experiencing significant heave during storm events. FTG utilized roadway monitoring prisms, measured by the ATS, and piezometers to identify the specific locations where heave would occur and the specific depths at which ground water pressure would increase substantially during storm events. By analyzing the roadway displacement data with the groundwater data, FTG was able to help determine the cause of the roadway heave and identify an old storm drain that had not been properly abandoned. This provided enough information for the contractor to properly remediate the area of concern and prevent future occurrences of this issue.
The Value of Monitoring Data
Effective monitoring isn’t simply about collecting data. It’s about understanding what that data means. When accurate measurements are collected and evaluated over time, monitoring can provide project teams with valuable insight into changing conditions and help support confident decision-making.
Need reliable insight into movement or changing site conditions?
Foundation Test Group can help design and implement monitoring programs tailored to your project. From Automated Total Station monitoring to subsurface instrumentation, our team can provide the data and engineering insight needed to identify changes early and support informed decisions.
Contact FTG to discuss your project and monitoring needs.
